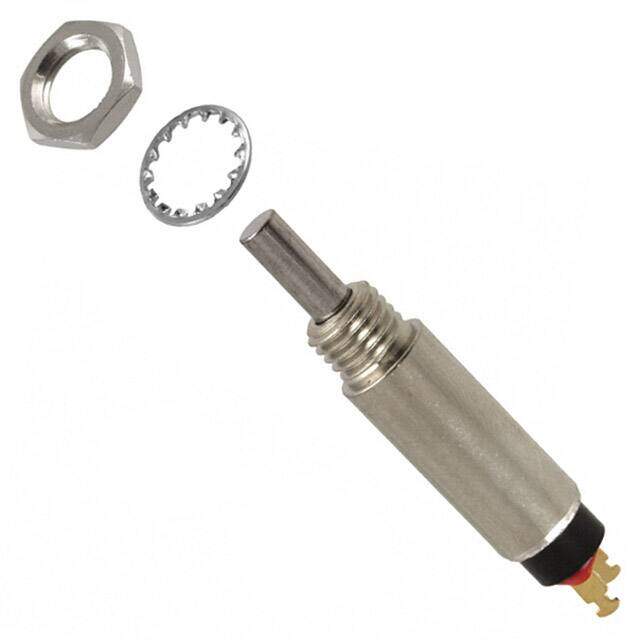

8731SHZBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $10.06
Unit Price: USD $10.060239
≥1 USD $10.060239
≥10 USD $9.490789
≥100 USD $8.953577
≥500 USD $8.446765
≥1000 USD $7.968651
Inventory: 970
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 9.91mm
Length 9.53mm
Technical
Illumination Type Illuminated
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Number of Poles 1
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 8.08mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style Solder Lug
Depth 9.53mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Number of Positions 2
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Overtravel
Series 8700
Published 2010
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Brass
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Gold
Supply Chain
Factory Lead Time 14 Weeks
