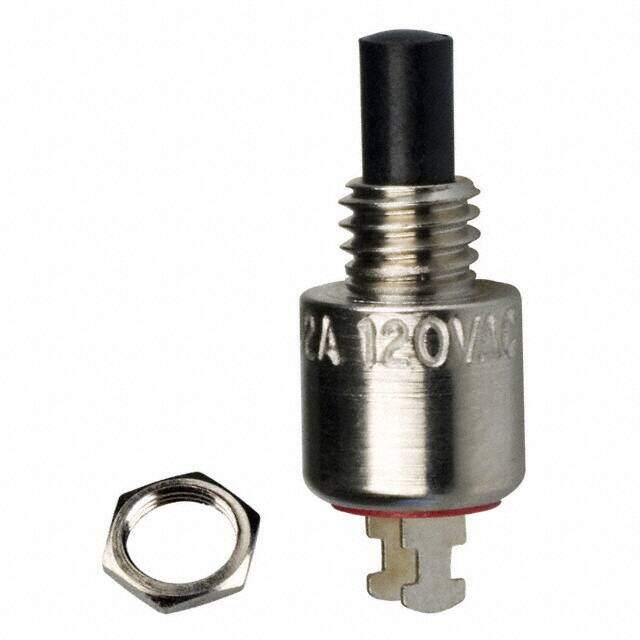

8631ZQD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.5A 120V
PDF
/
Buying Options
Total Price: USD $10.05
Unit Price: USD $10.0496
≥1 USD $10.0496
≥10 USD $9.05344
≥100 USD $8.673984
≥500 USD $8.24758
≥1000 USD $7.915732
≥3000 USD $7.441764
Inventory: 272
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Actuator Length 4.45mm
Width 6.3mm
Length 6.35mm
Diameter 6.35mm
Technical
Contact Current Rating 500mA
Max Voltage Rating (DC) 28V
Throw Configuration SPST
Number of Poles 1
Electrical Life 250,000 Cycles
Max Current Rating 500mA
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Insulation Resistance 109Ohm
Panel Cutout Dimensions Circular - 4.37mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Plunger for Cap
Approval Agency UL
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 500mA
Depth 6.35mm
Orientation Straight
Current Rating (Amps) 500mA AC/DC
Voltage - Rated DC 28V
Number of Positions 2
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 8600
Published 2001
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Nylon
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
