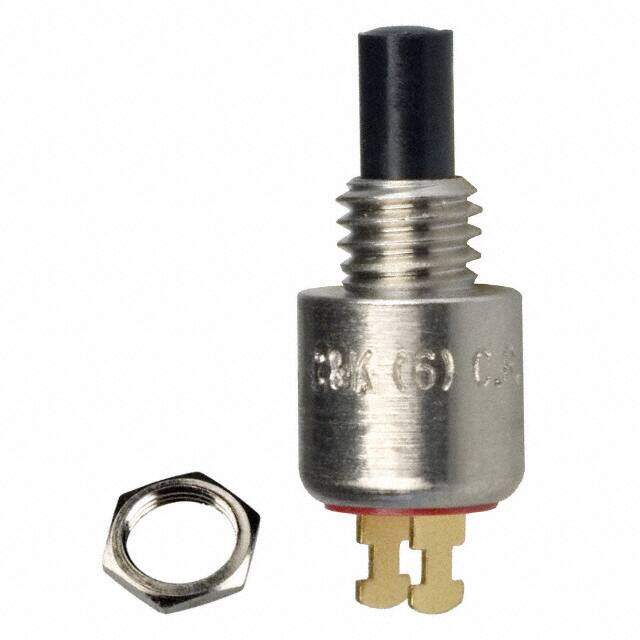

8631ZBD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $9.69
Unit Price: USD $9.69105
≥1 USD $9.69105
≥10 USD $9.1425
≥100 USD $8.625
≥500 USD $8.13679
≥1000 USD $7.67622
≥3000 USD $7.24172
Inventory: 495
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Actuator Length 4.45mm
Width 6.3mm
Length 6.35mm
Diameter 6.35mm
Technical
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Number of Poles 1
Electrical Life 250,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Insulation Resistance 109Ohm
Panel Cutout Dimensions Circular - 4.37mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Plunger for Cap
Approval Agency UL
Voltage - Rated AC 20V
Termination Style Solder Lug
Depth 6.35mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Number of Positions 2
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 8600
Published 2001
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Nylon
Housing Material Glass
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Gold
Supply Chain
Factory Lead Time 14 Weeks
