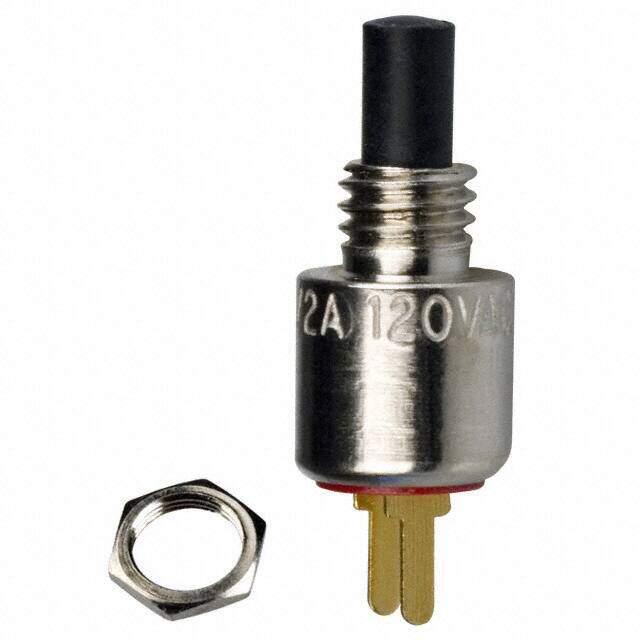

8631CGD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.5A 120V
PDF
/
Buying Options
Total Price: USD $5.44
Unit Price: USD $5.435406
≥1 USD $5.435406
≥200 USD $2.103266
≥500 USD $2.029743
≥1000 USD $1.992982
Inventory: 1112
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 4.45mm
Length 6.35mm
Technical
Max Voltage Rating (DC) 28V
Throw Configuration SPST
Electrical Life 250,000 Cycles
Max Current Rating 500mA
Max Voltage Rating (AC) 120V
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 4.37mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Plunger for Cap
Voltage - Rated AC 120V
Termination Style PC Pin
Current Rating 500mA
Depth 6.35mm
Orientation Straight
Current Rating (Amps) 500mA AC/DC
Voltage - Rated DC 28V
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 8600
Published 2010
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Nylon
Mounting Type Panel Mount, Rear
Mount Panel, Through Hole
Contact Plating Gold, Silver
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
