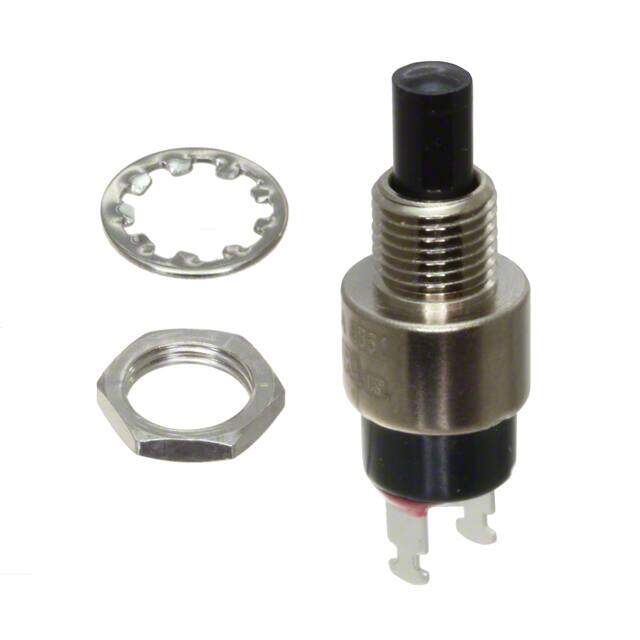

8551SZQE2

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Switch Push Button OFF Mom SPST Round Plunger 3A 120VAC 28VDC Momentary Contact Solder Lug Panel Mount
PDF
/
Buying Options
Total Price: USD $6.04
Unit Price: USD $6.044275
≥1 USD $6.044275
≥10 USD $5.702143
≥100 USD $5.379383
≥500 USD $5.074892
≥1000 USD $4.787628
Inventory: 1103
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Actuator Material Glass, Phenolic, Polyester

Technical

Operating Temperature -30°C~65°C
Packaging Tray
Published 2010
Series 8500
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 3A AC/DC
Orientation Straight
Depth 9.53mm
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 120V
Max Current Rating 3A
Electrical Life 10,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 28V

Dimensions

Length 9.53mm
Actuator Length 5.33mm

Compliance

RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
