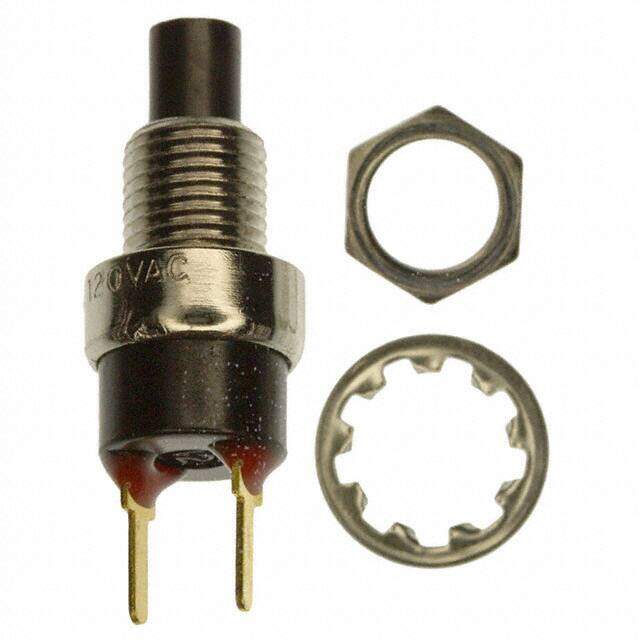

8534SCGE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 1A 120V
PDF
/
Inventory: 2810
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Contact Plating Gold
Mount Panel, Through Hole
Mounting Type Panel Mount, Rear
Actuator Material Glass, Phenolic, Polyester
Technical
Operating Temperature -30°C~65°C
Packaging Bulk
Published 2010
Series 8500
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Max Operating Temperature 65°C
Min Operating Temperature -30°C
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 9.53mm
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Round, Plunger
Circuit SPST-NC
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 250,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 28V
Dimensions
Length 9.53mm
Actuator Length 5.33mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
