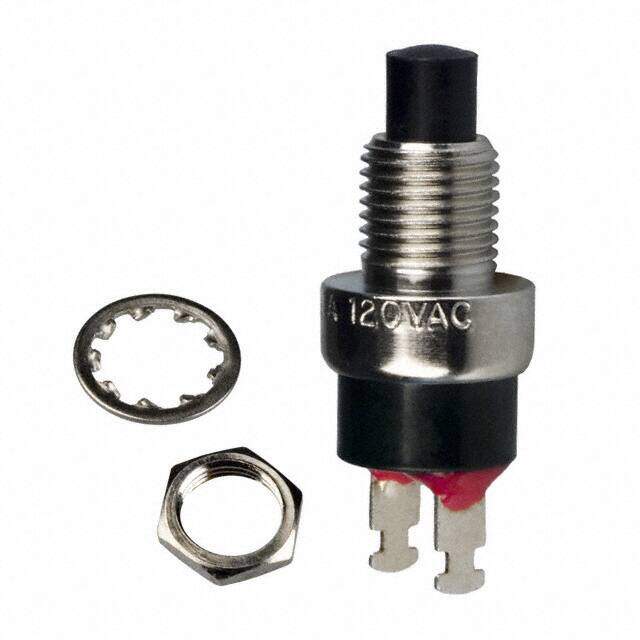

8534MZQE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 1A 120V
PDF
/
Buying Options
Total Price: USD $15.27
Unit Price: USD $15.266401
≥1 USD $15.266401
Inventory: 1519
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Glass
Actuator Material Glass, Phenolic, Polyester
Technical
Operating Temperature -30°C~65°C
Packaging Tray
Published 2010
Series 8500
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Number of Positions 2
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 9.53mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 120V
Approval Agency UL
Actuator Type Round, Plunger
Circuit SPST-NC
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 250,000 Cycles
Number of Poles 1
Throw Configuration SPST
Max Voltage Rating (DC) 28V
Dimensions
Diameter 9.52mm
Length 9.53mm
Width 10.8mm
Actuator Length 3.81mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
