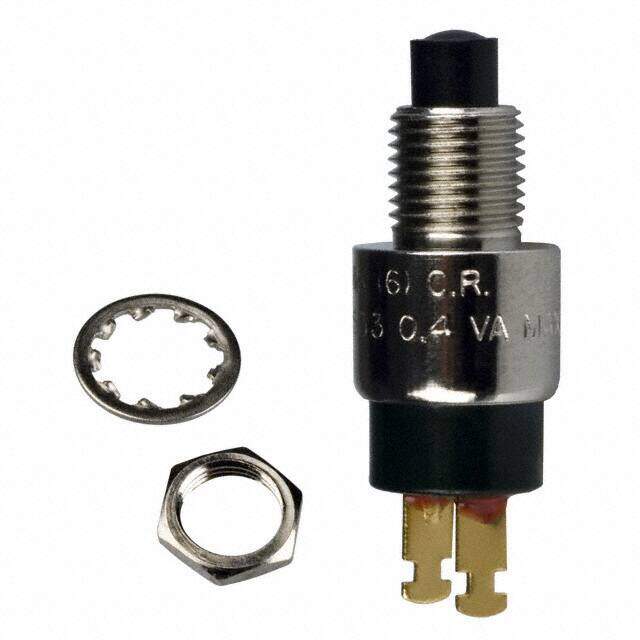

8533MZBE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 0.4VA 20V
PDF
/
Inventory: 3059
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 3.81mm
Length 9.53mm
Technical
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 250,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style Solder Lug
Depth 9.53mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 8500
Published 2009
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Phenolic, Polyester
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
