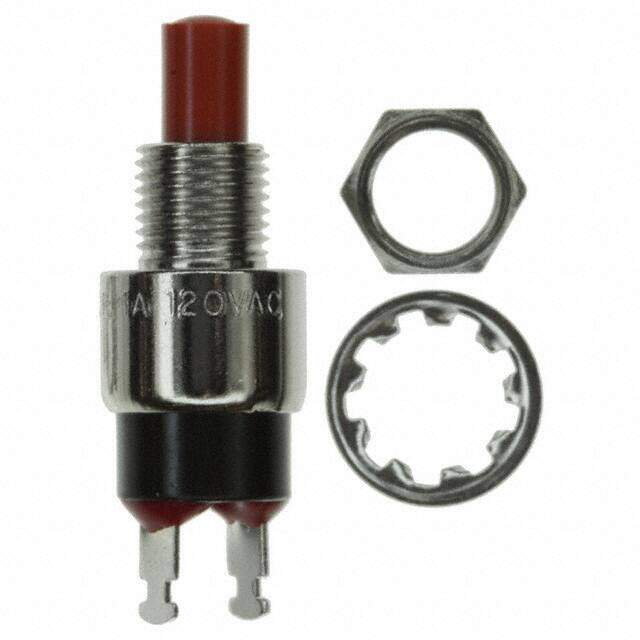

8531SZQE3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 1A 120V
PDF
/
Buying Options
Total Price: USD $4.96
Unit Price: USD $4.9632
≥1 USD $4.9632
≥10 USD $4.45808
≥100 USD $4.25216
≥500 USD $4.06934
≥1000 USD $4.0249
Inventory: 1190
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 5.33mm
Length 9.53mm
Technical
Max Voltage Rating (DC) 28V
Throw Configuration SPST
Electrical Life 250,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 120V
Color - Actuator/Cap Red
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 1A
Depth 9.53mm
Orientation Straight
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 8500
Published 2010
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Phenolic, Polyester
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
