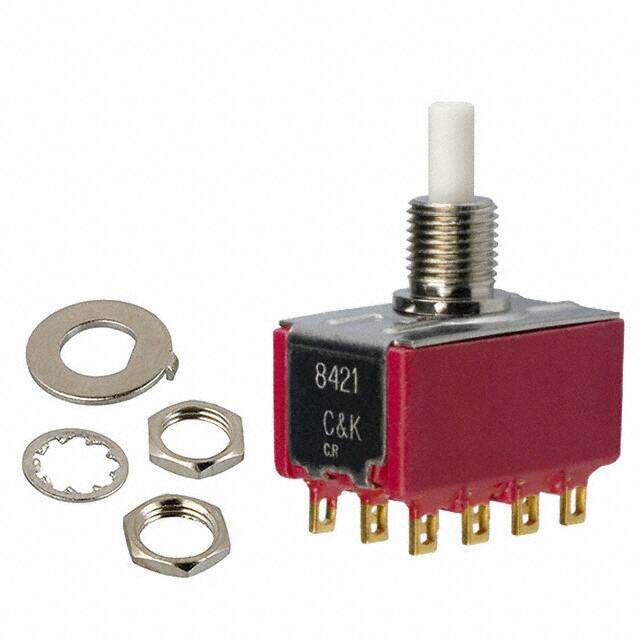

8421SHZGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON 4PDT 1A 120V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Rear
Housing Material Stainless Steel
Actuator Material Glass, Nylon, Polyester
Technical
Operating Temperature -30°C~75°C
Packaging Bulk
Published 2012
Series 8020
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Number of Positions 2
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 21.59mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 120V
Approval Agency CSA, UL
Actuator Type Round, Plunger
Circuit 4PDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap White
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 60,000 Cycles
Number of Poles 4
Max Voltage Rating (DC) 28V
Contact Current Rating 1A
Dimensions
Length 12.7mm
Actuator Length 5.54mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
