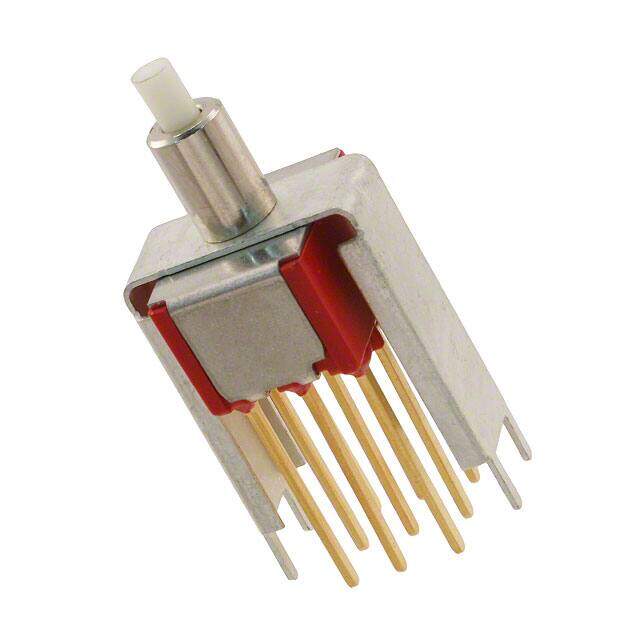

8321SY9V8GE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON 3PDT 1A 120V
PDF
/
Buying Options
Total Price: USD $27.86
Unit Price: USD $27.8608
≥1 USD $27.8608
≥10 USD $25.35368
≥100 USD $24.174656
≥500 USD $22.5533
≥1000 USD $21.6689
≥3000 USD $20.19483
Inventory: 139
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Contact Plating Gold
Mount Brackets, Through Hole
Mounting Type Through Hole
Housing Material Stainless Steel
Actuator Material Glass, Nylon, Polyester
Technical
Operating Temperature -30°C~75°C
Packaging Tray
Published 2012
Series 8020
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 16.51mm
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Round, Plunger
Circuit 3PDT
Switch Function On-Mom
Color - Actuator/Cap White
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 60,000 Cycles
Max Voltage Rating (DC) 28V
Dimensions
Length 19.56mm
Actuator Length 4.65mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
