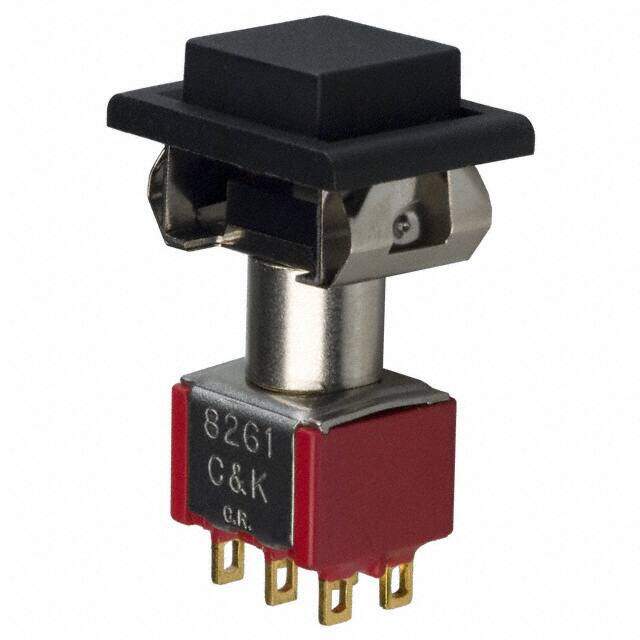

8261J81ZGE22 image
Favorite
8261J81ZGE22 image
Favorite

8261J81ZGE22

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 6A 120V
PDF
/
Buying Options
Total Price: USD $41.96
Unit Price: USD $41.960284
≥1 USD $41.960284
Inventory: 1099
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Silver
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Stainless Steel
Actuator Material Nylon

Technical

Operating Temperature -30°C~65°C
Packaging Tray
Published 2012
Series 8060
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 6A AC/DC
Orientation Straight
Depth 11.43mm
Current Rating 6A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Square, Button
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V

Dimensions

Length 12.7mm
Actuator Length 3.68mm

Compliance

RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
