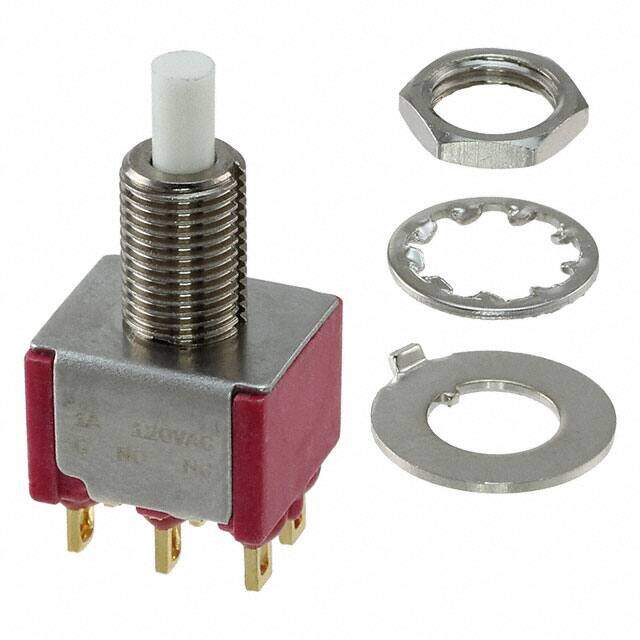

8221SYZGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches DPDT P/B (MOMN)
PDF
/
Buying Options
Total Price: USD $19.76
Unit Price: USD $19.756
≥1 USD $19.756
≥10 USD $17.9388
≥100 USD $17.132896
≥500 USD $16.22566
≥1000 USD $15.621056
≥3000 USD $14.613254
Inventory: 100
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 5.16mm
Length 12.7mm
Technical
Contact Current Rating 1A
Max Voltage Rating (DC) 28V
Electrical Life 60,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 120V
Color - Actuator/Cap White
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Plunger
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 1A
Depth 11.43mm
Orientation Straight
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series 8020
Published 2013
Packaging Tray
Operating Temperature -30°C~75°C
Physical
Actuator Material Glass, Nylon, Polyester
Housing Material Stainless Steel
Mounting Type Panel Mount, Rear
Mount Bushing, Panel
Contact Plating Gold, Silver
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
