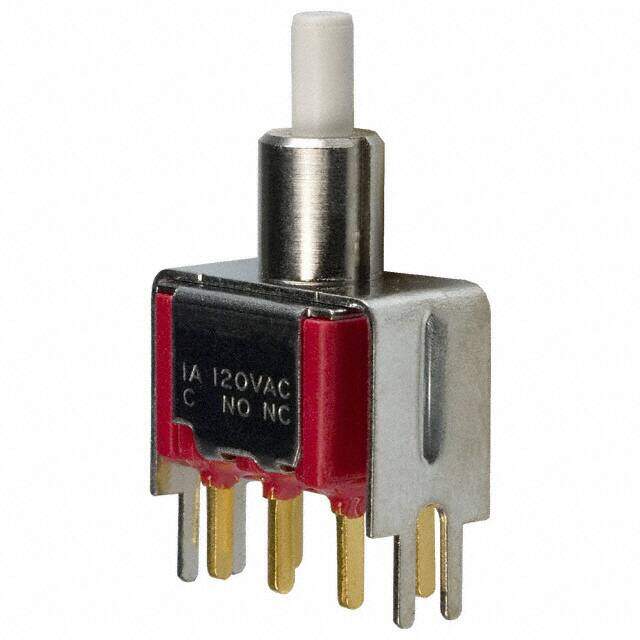

8221SD9V3GE image
Favorite
8221SD9V3GE image
Favorite

8221SD9V3GE

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 1A 120V
PDF
/
Buying Options
Total Price: USD $9.5
Unit Price: USD $9.4952
≥1 USD $9.4952
≥10 USD $8.5096
≥100 USD $8.231872
Inventory: 589
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Actuator Length 5.69mm
Length 16.26mm

Technical

Contact Current Rating 1A
Max Voltage Rating (DC) 28V
Electrical Life 60,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 120V
Color - Actuator/Cap White
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Plunger
Voltage - Rated AC 120V
Termination Style PC Pin
Current Rating 1A
Depth 11.43mm
Orientation Straight
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series 8020
Published 2012
Packaging Tray
Operating Temperature -30°C~75°C

Physical

Actuator Material Glass, Nylon, Polyester
Housing Material Stainless Steel
Mounting Type Through Hole
Mount Brackets, Through Hole
Contact Plating Gold
Contact Material Silver

Supply Chain

Factory Lead Time 14 Weeks
