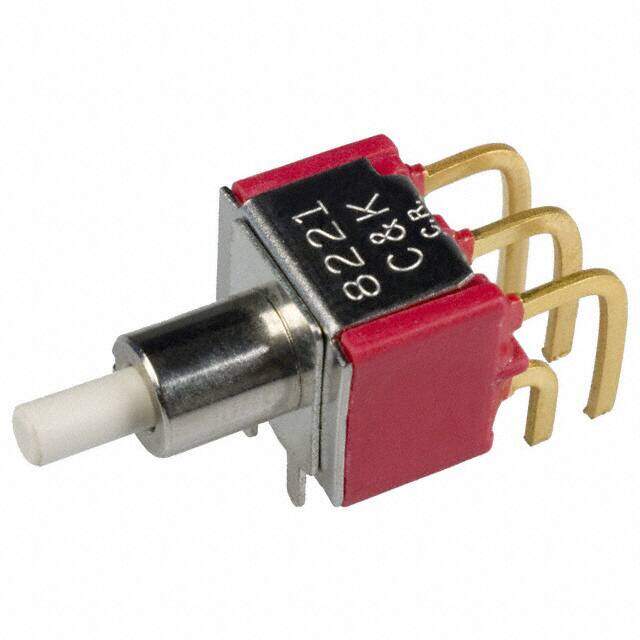

8221MD9AGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON Mom DPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
PDF
/
Inventory: 3847
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Contact Plating Gold
Mount Snap in, Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Stainless Steel
Actuator Material Glass, Nylon, Polyester
Technical
Operating Temperature -30°C~75°C
Packaging Tray
Published 2013
Series 8020
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Right Angle
Depth 30.05mm
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Color - Actuator/Cap White
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 60,000 Cycles
Max Voltage Rating (DC) 28V
Dimensions
Length 12.7mm
Actuator Length 5.79mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
