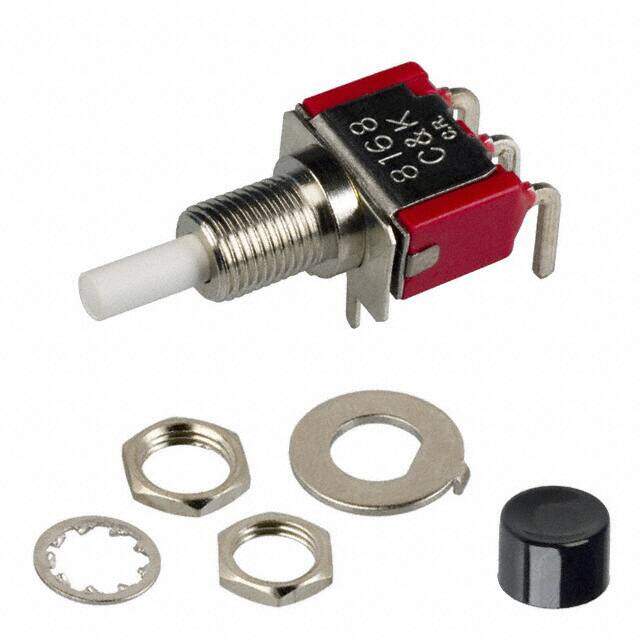

8168SHAQE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 120V
PDF
/
Buying Options
Total Price: USD $11.03
Unit Price: USD $11.0264
≥1 USD $11.0264
≥10 USD $9.95896
≥100 USD $9.479712
≥500 USD $9.00042
≥1000 USD $8.680874
≥3000 USD $8.148325
Inventory: 69
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 10.51mm
Length 12.57mm
Technical
Max Voltage Rating (DC) 28V
Electrical Life 50,000 Cycles
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 120V
Termination Style PC Pin
Current Rating 6A
Depth 31.47mm
Orientation Right Angle
Current Rating (Amps) 6A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 8060
Published 2012
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Nylon, Polyester
Housing Material Stainless Steel
Mounting Type Panel Mount, Right Angle, Rear
Mount Panel, Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
