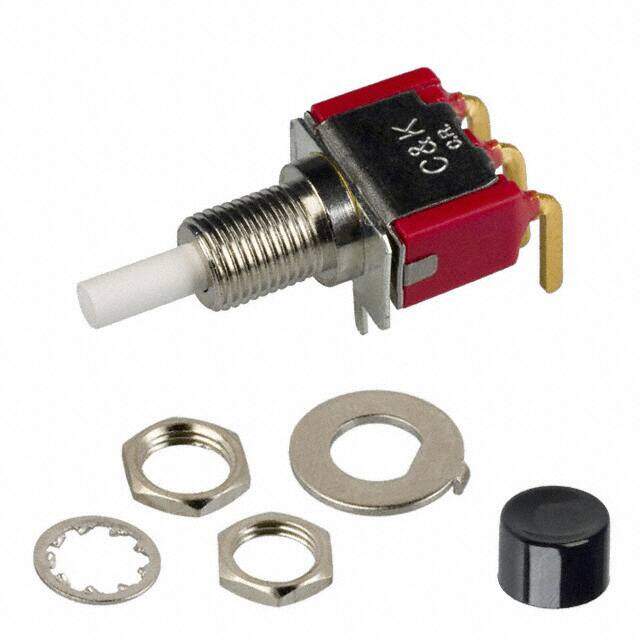

8168SHABE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $10.31
Unit Price: USD $10.3136
≥1 USD $10.3136
≥10 USD $9.29104
≥100 USD $8.901728
≥500 USD $8.46406
≥1000 USD $8.1235
≥3000 USD $7.637115
Inventory: 105
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 10.51mm
Length 12.57mm
Technical
Max Voltage Rating (DC) 20V
Electrical Life 50,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 20V
Termination Style PC Pin
Current Rating 6A
Depth 31.47mm
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 8060
Published 2011
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Nylon, Polyester
Housing Material Stainless Steel
Mounting Type Panel Mount, Right Angle, Rear
Mount Panel, Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
