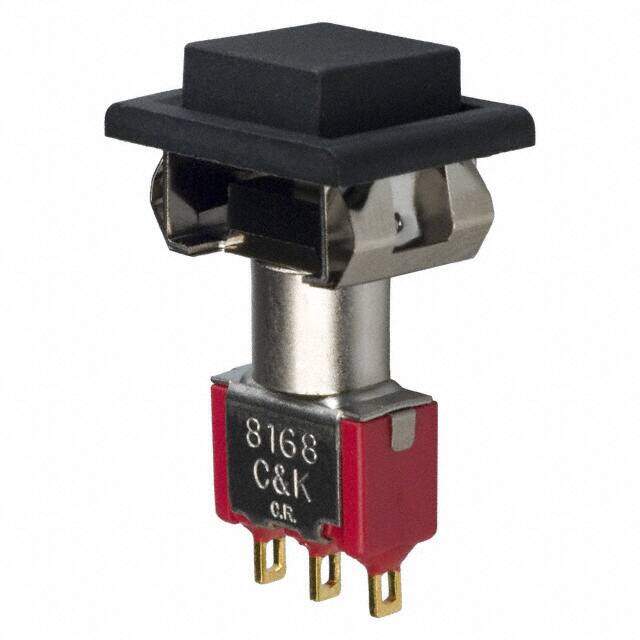

8168J81ZGE22
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 120V
PDF
/
Buying Options
Total Price: USD $9.91
Unit Price: USD $9.909446
≥1 USD $9.909446
≥10 USD $9.348529
≥100 USD $8.81937
≥500 USD $8.320165
≥1000 USD $7.849205
Inventory: 1280
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.68mm
Width 6.86mm
Length 19.43mm
Technical
Contact Current Rating 6A
Max Voltage Rating (DC) 28V
Electrical Life 50,000 Cycles
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Switch Function On-Mom
Circuit SPDT
Actuator Type Square, Button
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 6A
Depth 15.62mm
Orientation Straight
Current Rating (Amps) 6A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 8060
Published 2012
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Nylon
Housing Material Stainless Steel
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
