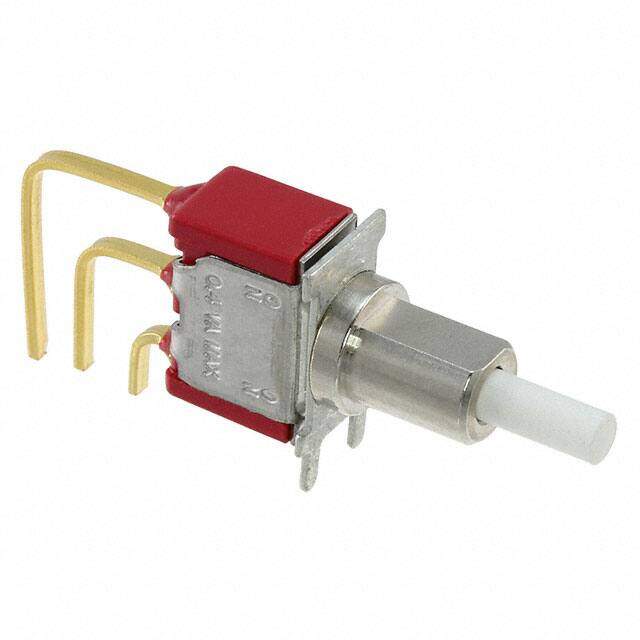

8161SH9AV2BE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON ON SPDT Round Plunger 20VAC 20VDC 0.4VA Alternate Contact PC Pins Thru-Hole
PDF
/
Buying Options
Total Price: USD $10.18
Unit Price: USD $10.1816
≥1 USD $10.1816
≥10 USD $9.17576
≥100 USD $8.7912
≥500 USD $8.3589
≥1000 USD $8.022634
≥3000 USD $7.542225
Inventory: 91
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Gold
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Housing Material Stainless Steel
Actuator Material Glass, Nylon, Polyester
Technical
Operating Temperature -30°C~65°C
Packaging Tray
Published 2012
Series 8060
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Depth 39.08mm
Current Rating 6A
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Round, Button
Circuit SPDT
Switch Function On-On
Color - Actuator/Cap Black
Max Voltage Rating (AC) 20V
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 20V
Dimensions
Length 9.53mm
Actuator Length 10.51mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
