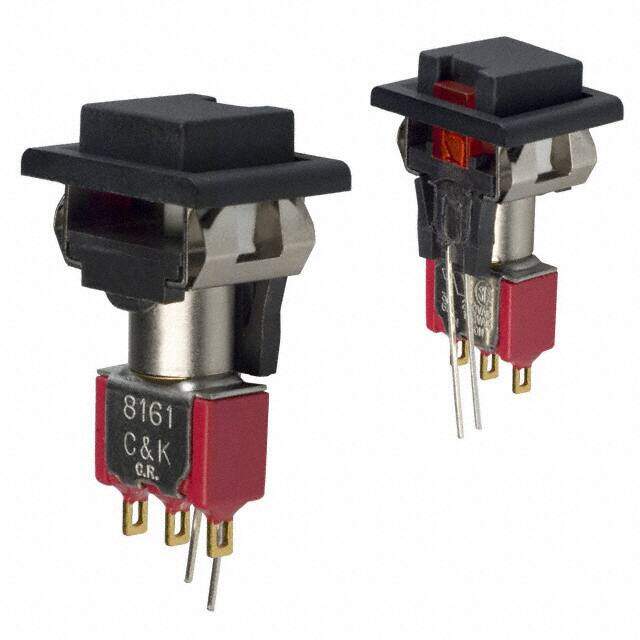

8161J86ZGE223 image
Favorite
8161J86ZGE223 image
Favorite

8161J86ZGE223

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 6A 120V
PDF
/
Buying Options
Total Price: USD $20.03
Unit Price: USD $20.030915
≥1 USD $20.030915
≥200 USD $7.752675
≥480 USD $7.479591
≥1000 USD $7.345676
Inventory: 1385
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Silver
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Stainless Steel
Actuator Material Nylon

Technical

Operating Temperature -30°C~65°C
Packaging Tray
Published 2012
Series 8060
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Voltage - Rated DC 28V
Current Rating (Amps) 6A AC/DC
Orientation Straight
Depth 15.62mm
Current Rating 6A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Color - Actuator/Cap Black
Illumination Voltage (Nominal) 2.1VDC
Illumination Type, Color LED, Red
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Illumination Type LED
Illumination Color Red

Dimensions

Length 19.43mm
Actuator Length 3.68mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
