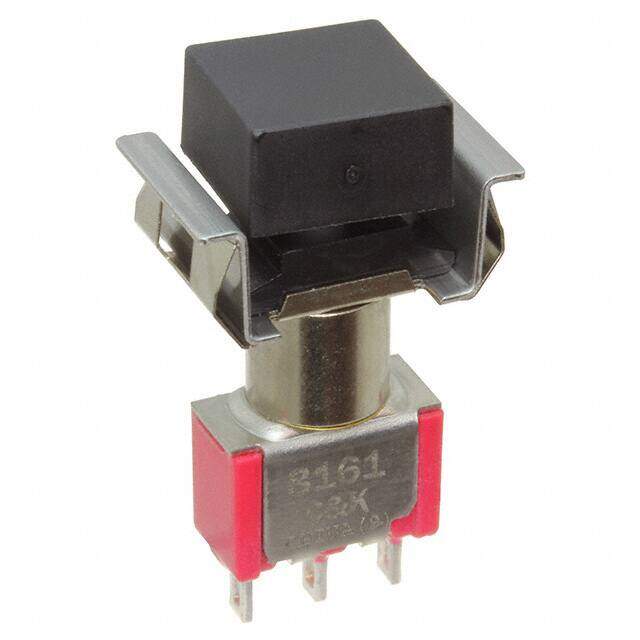

8161J80ZQE2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 120V
PDF
/
Buying Options
Total Price: USD $7.37
Unit Price: USD $7.3744
≥1 USD $7.3744
≥10 USD $6.66424
≥100 USD $6.343744
≥500 USD $6.2744
Inventory: 157
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 5.59mm
Length 12.7mm
Technical
Max Voltage Rating (DC) 28V
Electrical Life 50,000 Cycles
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Switch Function On-On
Circuit SPDT
Actuator Type Square, Button
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 6A
Depth 6.86mm
Orientation Straight
Current Rating (Amps) 6A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 8060
Published 2012
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Nylon
Housing Material Stainless Steel
Mounting Type Panel Mount, Snap-In
Mount Bushing, Panel, Snap in
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
