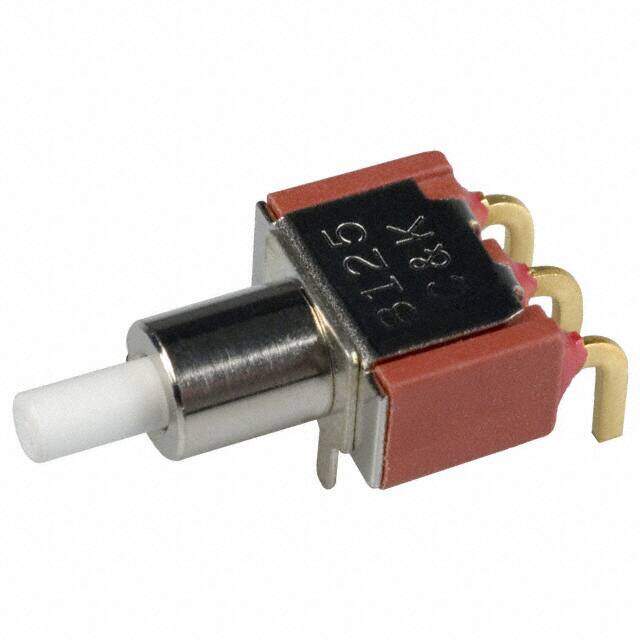

8125SD9A4BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole
PDF
/
Buying Options
Total Price: USD $15.27
Unit Price: USD $15.27034
≥1 USD $15.27034
Inventory: 7450
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 5.79mm
Length 12.7mm
Technical
Max Voltage Rating (DC) 20V
Throw Configuration SPDT
Electrical Life 60,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap White
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Current Rating 1A
Depth 26.24mm
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Min Operating Temperature -30°C
Max Operating Temperature 75°C
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series 8020
Published 2012
Packaging Bulk
Operating Temperature -30°C~75°C
Physical
Actuator Material Glass, Nylon, Polyester
Housing Material Stainless Steel
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
