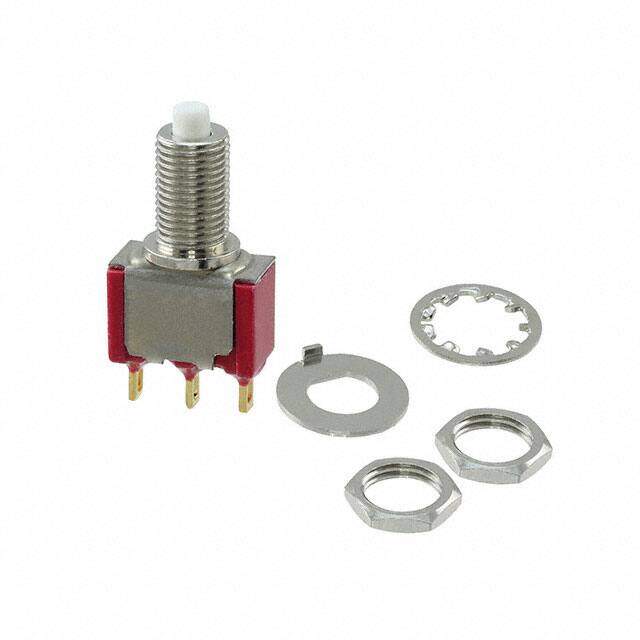

8125LY4ZBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $8.18
Unit Price: USD $8.184
≥1 USD $8.184
≥10 USD $7.3744
≥100 USD $7.065696
≥500 USD $6.71814
≥1000 USD $6.44776
≥3000 USD $6.061678
Inventory: 104
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 2.29mm
Length 12.7mm
Technical
Max Voltage Rating (DC) 20V
Electrical Life 60,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap White
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style Solder Lug
Current Rating 1A
Depth 7.98mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series 8020
Published 2015
Packaging Tray
Operating Temperature -30°C~75°C
Physical
Actuator Material Glass, Nylon, Polyester
Housing Material Stainless Steel
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
