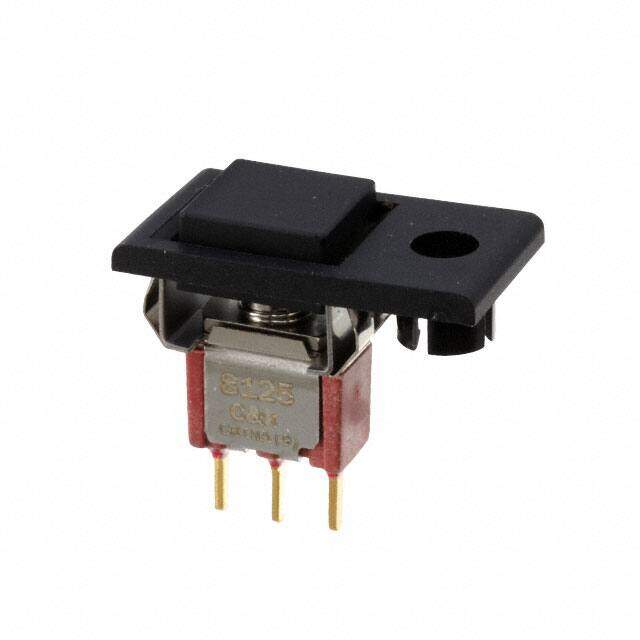

8125J82CBE22
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON Mom SPDT Square Button 20VAC 20VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through H
PDF
/
Buying Options
Total Price: USD $4.53
Unit Price: USD $4.53274
≥1 USD $4.53274
≥10 USD $4.339134
≥100 USD $3.972852
Inventory: 58
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Gold
Mount Panel, Snap in, Through Hole
Mounting Type Panel Mount, Snap-In
Housing Material Stainless Steel
Actuator Material Nylon
Technical
Operating Temperature -30°C~75°C
Packaging Bulk
Published 2012
Series 8020
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Depth 15.62mm
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 20V
Electrical Life 60,000 Cycles
Max Voltage Rating (DC) 20V
Dimensions
Length 27.94mm
Actuator Length 1.57mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
