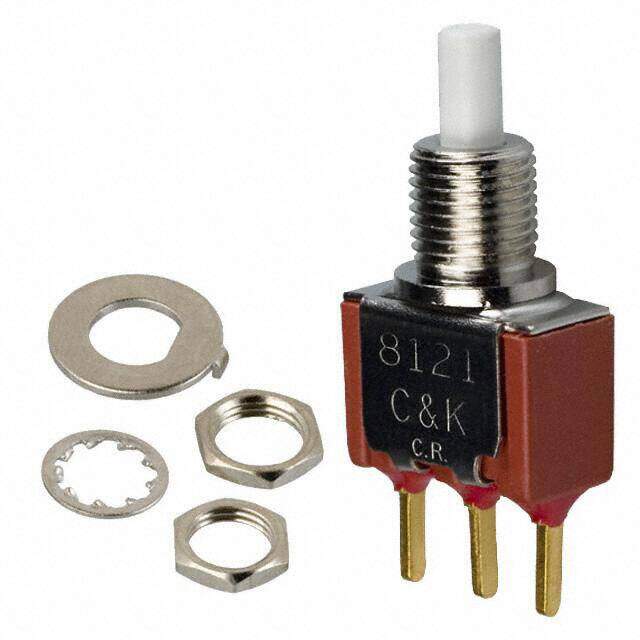

8121SDCGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 120V
PDF
/
Buying Options
Total Price: USD $8.32
Unit Price: USD $8.3248
≥1 USD $8.3248
≥10 USD $7.52224
≥100 USD $7.160032
≥500 USD $7.081888
Inventory: 1798
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 6.2mm
Length 12.7mm
Technical
Max Voltage Rating (DC) 28V
Electrical Life 60,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 120V
Color - Actuator/Cap White
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 120V
Termination Style PC Pin
Current Rating 1A
Depth 6.86mm
Orientation Straight
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series 8020
Published 2012
Packaging Bulk
Operating Temperature -30°C~75°C
Physical
Actuator Material Glass, Nylon, Polyester
Housing Material Stainless Steel
Mounting Type Panel Mount, Rear
Mount Panel, Through Hole
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
