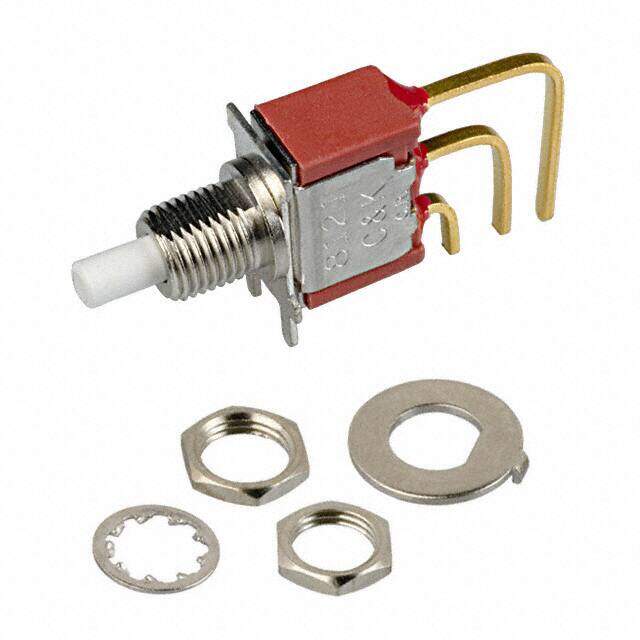

8121SDAV2GE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button N.C. SPDT Round Plunger 1A 120VAC 28VDC 0.4W Momentary Contact PC Pins Thru-Hole
PDF
/
Inventory: 4240
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 5.79mm
Length 6.86mm
Technical
Contact Current Rating 1A
Max Voltage Rating (DC) 28V
Electrical Life 60,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 120V
Color - Actuator/Cap White
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 120V
Termination Style PC Pin
Current Rating 1A
Depth 33.6mm
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series 8020
Published 2012
Packaging Bulk
Operating Temperature -30°C~75°C
Physical
Actuator Material Glass, Nylon, Polyester
Housing Material Stainless Steel
Mounting Type Panel Mount, Right Angle, Vertical, Rear
Mount Panel, Through Hole, Vertical
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
