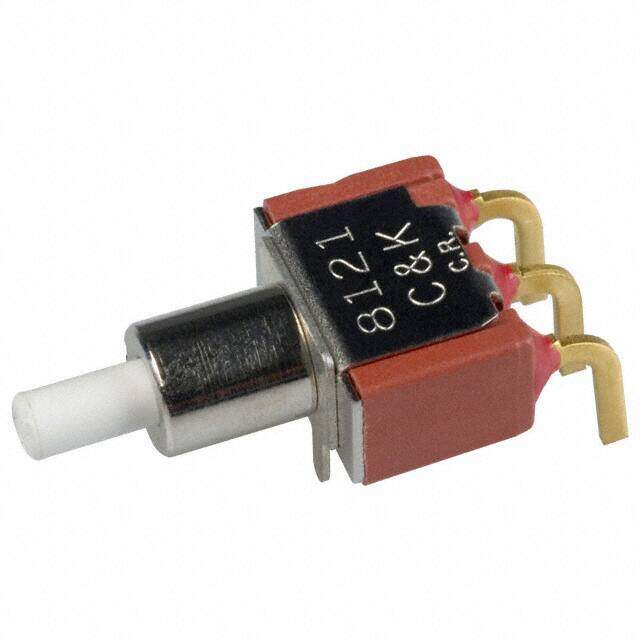

8121SD9AGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 120V
PDF
/
Buying Options
Total Price: USD $13.54
Unit Price: USD $13.5432
≥1 USD $13.5432
≥10 USD $12.14312
≥100 USD $11.609664
≥500 USD $11.00924
≥1000 USD $10.60884
≥3000 USD $9.941615
Inventory: 1125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Snap in, Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Stainless Steel
Actuator Material Glass, Nylon, Polyester
Technical
Operating Temperature -30°C~75°C
Packaging Tray
Published 2012
Series 8020
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Number of Positions 2
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Right Angle
Depth 26.24mm
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 120V
Approval Agency CSA, UL
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Insulation Resistance 1GOhm
Color - Actuator/Cap White
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 60,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 28V
Contact Current Rating 1A
Dimensions
Length 12.7mm
Width 12.7mm
Actuator Length 5.79mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
