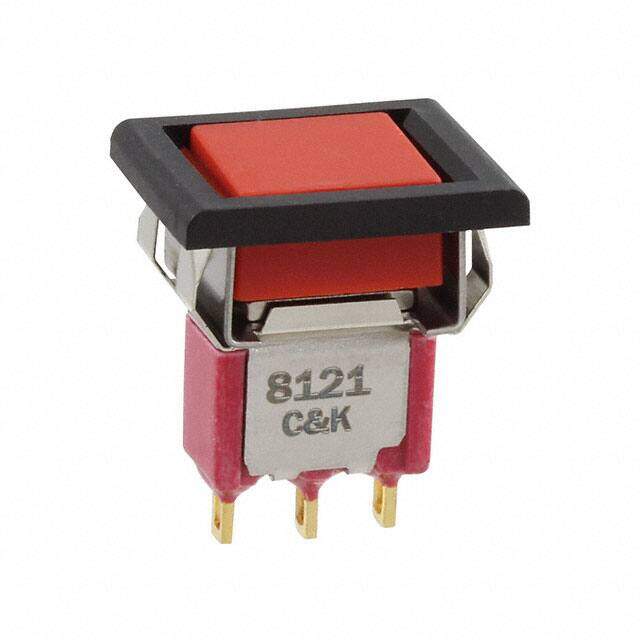

8121J83ZGE32
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 120V
PDF
/
Buying Options
Total Price: USD $12.66
Unit Price: USD $12.6632
≥1 USD $12.6632
≥10 USD $11.35552
≥100 USD $10.856384
≥500 USD $10.2949
≥1000 USD $9.920574
≥3000 USD $9.29669
Inventory: 193
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 0m
Length 19.43mm
Technical
Max Voltage Rating (DC) 28V
Electrical Life 60,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 120V
Color - Actuator/Cap Red
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Switch Function On-Mom
Circuit SPDT
Actuator Type Square, Button, Flush
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 1A
Depth 15.62mm
Orientation Straight
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series 8020
Published 2012
Packaging Tray
Operating Temperature -30°C~75°C
Physical
Actuator Material Nylon
Housing Material Stainless Steel
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
