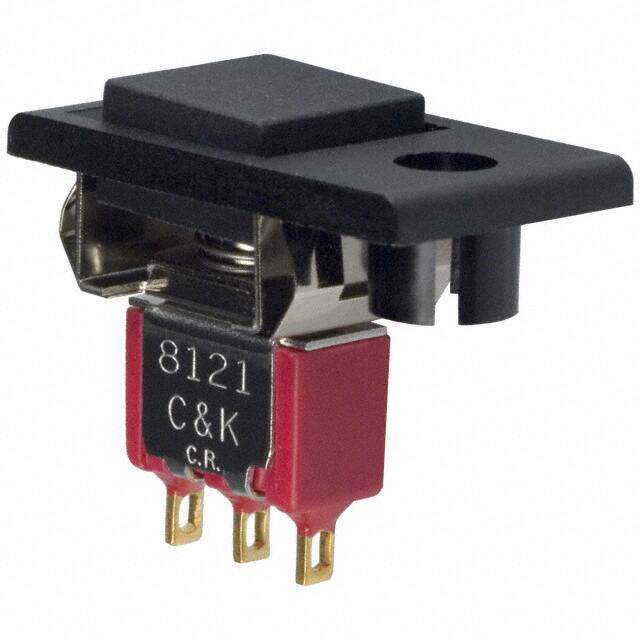

8121J82ZGE22
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 120V
PDF
/
Inventory: 3939
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Stainless Steel
Actuator Material Nylon
Technical
Operating Temperature -30°C~75°C
Packaging Tray
Published 2012
Series 8020
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 15.62mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 60,000 Cycles
Max Voltage Rating (DC) 28V
Dimensions
Length 27.94mm
Width 6.86mm
Actuator Length 1.57mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
