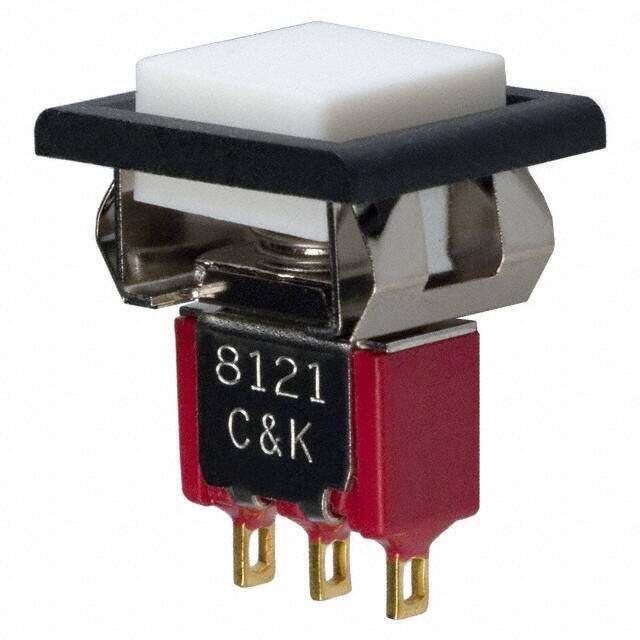

8121J81ZGE12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 120V
PDF
/
Buying Options
Total Price: USD $11.94
Unit Price: USD $11.943378
≥1 USD $11.943378
≥10 USD $11.267339
≥100 USD $10.629565
≥500 USD $10.02789
≥1000 USD $9.460279
Inventory: 1166
Minimum: 1
-
+
Technical Details
Technical
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 7.14mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Color - Actuator/Cap White
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 60,000 Cycles
Max Voltage Rating (DC) 28V
Contact Current Rating 1A
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series 8020
Published 2012
Packaging Tray
Operating Temperature -30°C~75°C
Dimensions
Length 12.7mm
Actuator Length 1.57mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Actuator Material Nylon
Housing Material Stainless Steel
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
