MPI002/TE/WH/24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

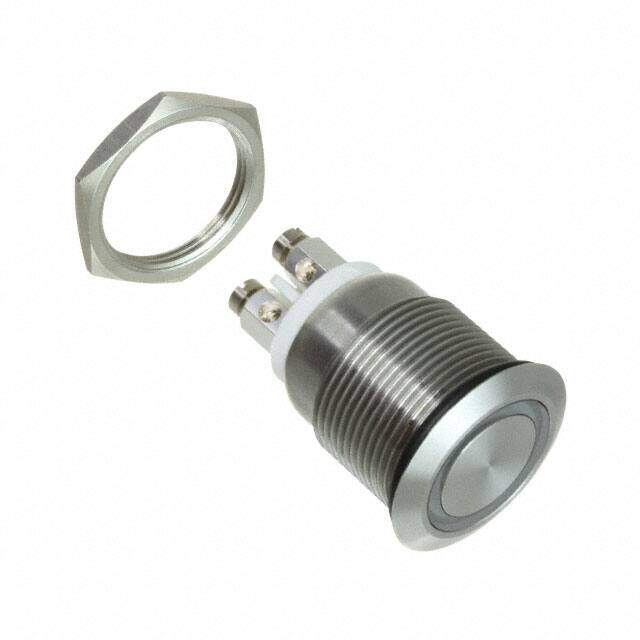

Illuminated Stainless Steel Vandal Resistant Switch
PDF
/
Buying Options
Total Price: USD $45.44
Unit Price: USD $45.4432
≥1 USD $45.4432
≥10 USD $41.35208
≥100 USD $39.428928
≥500 USD $36.784352
≥1000 USD $35.341768
≥3000 USD $32.93759
Inventory: 83
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 750,000 Cycles
Throw Configuration SPST
Electrical Life 35,000 Cycles
Illumination Type, Color LED, White
Illumination Voltage (Nominal) 24VDC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Flush
Termination Style Screw Terminal
Current Rating 50mA
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating (Amps) 50mA DC
Voltage - Rated DC 24V
Number of Positions 2
Type Anti-Vandal, Illuminated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Stainless Steel
Packaging Bulk
Operating Temperature -30°C~70°C
Physical
Mounting Type Panel Mount, Front
Contact Plating Gold
Supply Chain
Factory Lead Time 24 Weeks
