MPI002/TE/RD/6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

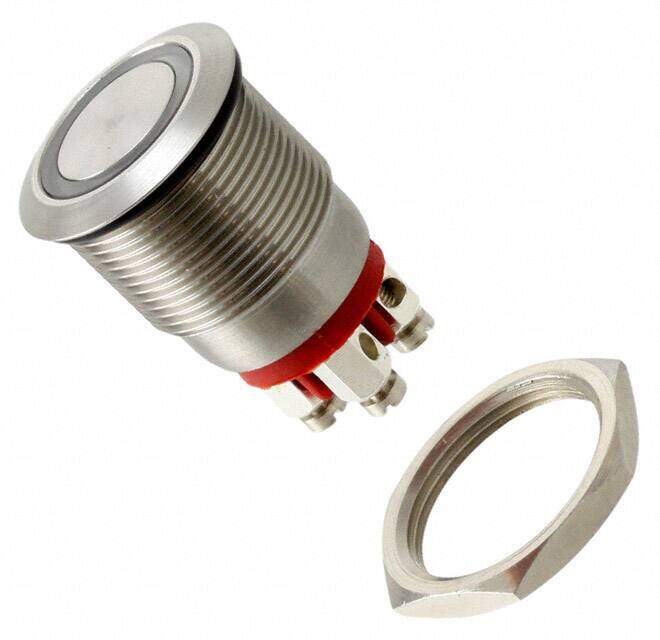

SWITCH, VR, RING ILLUM, RED, SCRW, 6V
PDF
/
Inventory: 6728
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Contact Material Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Material Stainless Steel
Technical
Operating Temperature -30°C~70°C
Packaging Bulk
Feature Stainless Steel
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Anti-Vandal, Illuminated
Color Red
Voltage - Rated DC 24V
Current Rating (Amps) 50mA DC
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating 50mA
Termination Style Screw Terminal
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Outside Diameter 22 mm
Operating Force 12 N
Contact Current Rating 50mA
Mechanical Life 750,000 Cycles
Throw Configuration SPST
Electrical Life 35,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 6VDC
Color - Actuator/Cap Silver
Insulation Resistance 1GOhm
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 19.20mm Dia
Compliance
Ratings Dust Tight, IP66, Water Resistant
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
