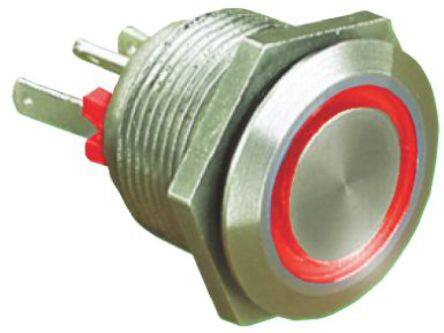

MPI002/RP/RD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH, VR, RING ILLUM, RED, SEALED
PDF
/
Inventory: 7115
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP66
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Operating Force 12 N
Contact Current Rating 50mA
Mechanical Life 750,000 Cycles
Throw Configuration SPST
Electrical Life 35,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 1.85VDC
Color - Actuator/Cap Silver
Insulation Resistance 1GOhm
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Lead Length 300mm
Actuator Type Round, Button, Flush
Termination Style Solder Lug
Current Rating 50mA
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating (Amps) 50mA DC
Voltage - Rated 24V
Color Red
Type Anti-Vandal, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Stainless Steel
Published 2003
Packaging Bulk
Operating Temperature -30°C~70°C
Physical
Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Material Gold
Supply Chain
Factory Lead Time 24 Weeks
