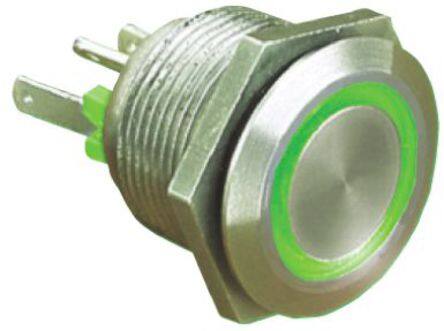

MPI002/RP/GN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH, VR, RING ILLUM, GRN, SEALED
PDF
/
Inventory: 3413
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Contact Material Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Material Stainless Steel
Technical
Operating Temperature -30°C~70°C
Packaging Bulk
Published 2003
Feature Stainless Steel
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Anti-Vandal, Illuminated
Color Green
Voltage - Rated 24V
Current Rating (Amps) 50mA DC
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating 50mA
Termination Style Solder Lug
Actuator Type Round, Button, Flush
Lead Length 300mm
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.20mm Dia
Contact Resistance 100mOhm
Insulation Resistance 1GOhm
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 3.5VDC
Illumination Type, Color LED, Green
Electrical Life 35,000 Cycles
Throw Configuration SPST
Mechanical Life 750,000 Cycles
Contact Current Rating 50mA
Operating Force 12 N
Outside Diameter 22 mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP66
