MPI002/RP/BL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

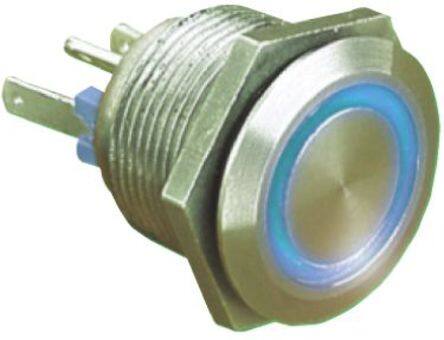

BULGIN MPI002/RP/BLVandal Resistant Switch, SPST-NO, Solder, 50 mA
PDF
/
Buying Options
Total Price: USD $42.64
Unit Price: USD $42.636
≥1 USD $42.636
≥10 USD $38.7992
≥100 USD $36.994848
≥500 USD $34.513424
≥1000 USD $33.159896
≥3000 USD $30.904122
Inventory: 111
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP66
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Illumination Type LED
Operating Force 12 N
Contact Current Rating 50mA
Mechanical Life 750,000 Cycles
Throw Configuration SPST
Electrical Life 35,000 Cycles
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 3.5VDC
Color - Actuator/Cap Silver
Insulation Resistance 1GOhm
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Lead Length 300mm
Actuator Type Round, Button, Flush
Termination Style Solder Lug
Current Rating 50mA
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating (Amps) 50mA DC
Voltage - Rated DC 24V
Color Blue
Type Anti-Vandal, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Stainless Steel
Published 2003
Packaging Bulk
Operating Temperature -30°C~70°C
Physical
Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Material Gold
Supply Chain
Factory Lead Time 24 Weeks
