MPI002/RP/BL/24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

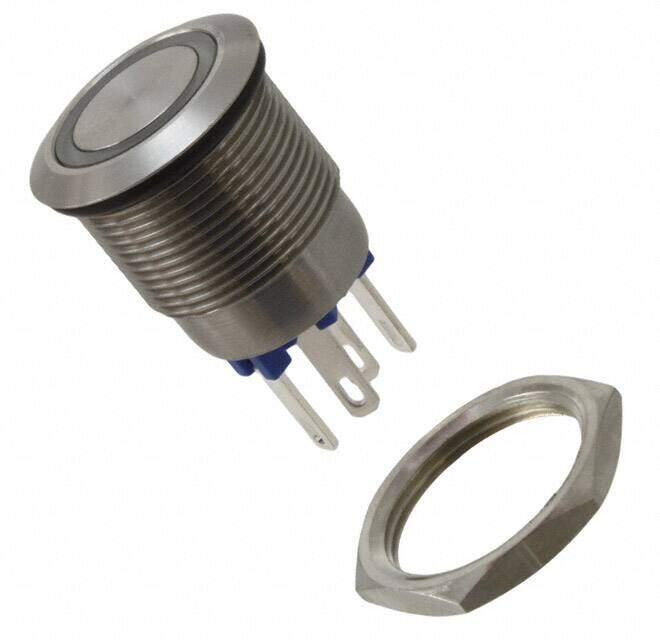

BULGIN MPI002/RP/BL/24Vandal Resistant Switch, SPST-NO, Solder, 50 mA
PDF
/
Buying Options
Total Price: USD $44.1
Unit Price: USD $44.0968
≥1 USD $44.0968
≥10 USD $40.12976
≥100 USD $38.262752
≥500 USD $35.696496
≥1000 USD $34.296592
≥3000 USD $31.963466
Inventory: 107
Minimum: 1
-
+
Technical Details
Technical
Ingress Protection IP66 - Dust Tight, Water Resistant
Depth 25.7mm
Current Rating 50mA
Termination Style Solder Lug
Actuator Type Round, Button, Flush
Lead Length 300mm
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.20mm Dia
Contact Resistance 100mOhm
Insulation Resistance 1GOhm
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Blue
Max Current Rating 50mA
Electrical Life 35,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Mechanical Life 750,000 Cycles
Contact Current Rating 50mA
Operating Force 12 N
Illumination Type LED
Current Rating (Amps) 50mA DC
Voltage - Rated 24V
Color Blue
Type Anti-Vandal, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Stainless Steel
Published 2003
Packaging Bulk
Operating Temperature -30°C~70°C
Dimensions
Length 22mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP66
Physical
Actuator Material Stainless Steel
Housing Material Stainless Steel
Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Material Gold
Supply Chain
Factory Lead Time 24 Weeks
