MPI001/TERM/RD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

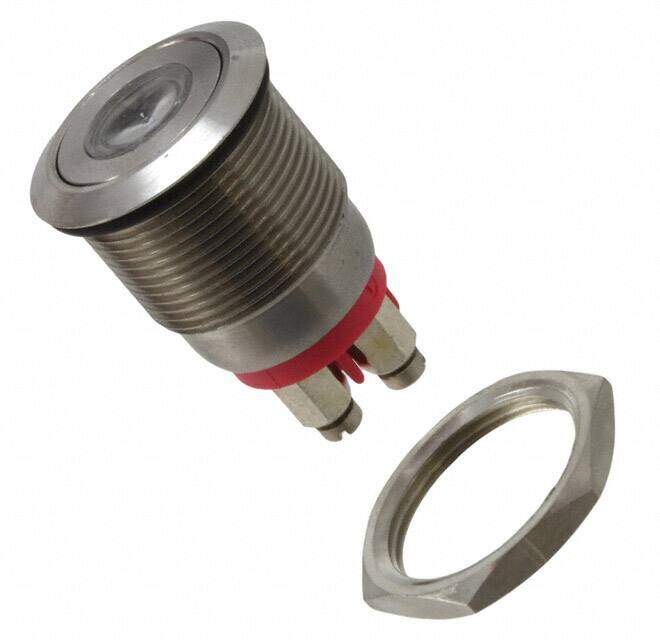

BULGIN MPI001/TERM/RDVandal Resistant Switch, SPST-NO, Natural, Screw, 50 mA
PDF
/
Buying Options
Total Price: USD $32.78
Unit Price: USD $32.776864
≥1 USD $32.776864
≥10 USD $30.921563
≥100 USD $29.17129
≥500 USD $27.520087
≥1000 USD $25.962349
Inventory: 1195
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Contact Plating Gold
Mounting Type Panel Mount, Front
Surface Mount NO
Technical
Operating Temperature -30°C~70°C
Packaging Tray
Published 2002
JESD-609 Code e4
Feature Stainless Steel
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Color Red
HTS Code 8536.50.90.31
Voltage - Rated DC 24V
Current Rating (Amps) 50mA DC
Ingress Protection IP66 - Dust Tight, Water Resistant
Termination Style Screw Terminal
Body Length or Diameter 19.2mm
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.20mm Dia
Contact Resistance 100mOhm
Insulation Resistance 1GOhm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 0.05A
Illumination Voltage (Nominal) 1.85VDC
Illumination Type, Color LED, Red
Contact Voltage(DC)-Max 24V
Electrical Life 35,000 Cycles
Mechanical Life 750,000 Cycles
Forward Current 20mA
Contact Current Rating 50mA
Forward Voltage 1.85V
Operating Force-Max 12 N
Dimensions
Body Height 31mm
Compliance
RoHS Status ROHS3 Compliant
