MPI001/TERM/GN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

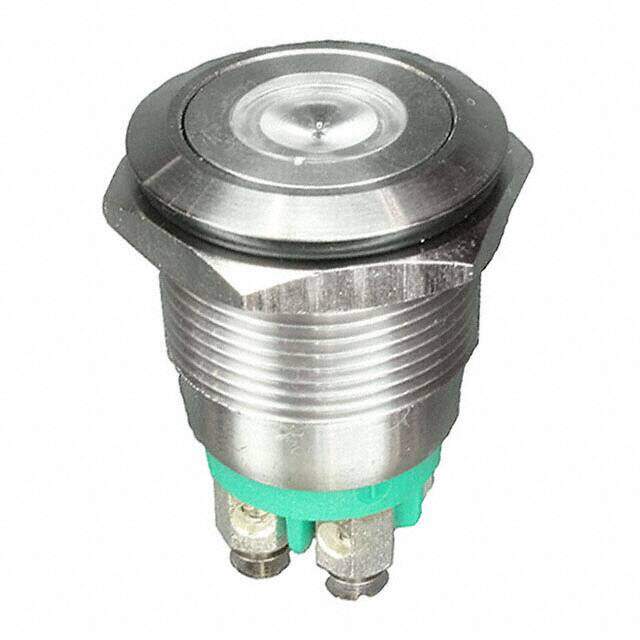

BULGIN MPI001/TERM/GNVandal Resistant Switch, MPI001 Series, SPST-NO, Natural, Screw, 50 mA
PDF
/
Buying Options
Total Price: USD $37.74
Unit Price: USD $37.7432
≥1 USD $37.7432
≥10 USD $34.3508
≥100 USD $32.752896
≥500 USD $30.556064
≥1000 USD $29.357856
≥3000 USD $27.360714
Inventory: 116
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Body Height 31mm
Technical
Operating Force-Max 12 N
Forward Voltage 3V
Contact Current Rating 50mA
Forward Current 20mA
Mechanical Life 750,000 Cycles
Electrical Life 35,000 Cycles
Contact Voltage(DC)-Max 24V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 3.5VDC
Contact Current(DC)-Max 0.05A
Color - Actuator/Cap Silver
Insulation Resistance 1GOhm
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Flush
Body Length or Diameter 19.2mm
Termination Style Screw Terminal
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating (Amps) 50mA DC
Voltage - Rated DC 24V
HTS Code 8536.50.90.31
Color Green
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Stainless Steel
JESD-609 Code e4
Packaging Tray
Operating Temperature -30°C~70°C
Physical
Surface Mount NO
Mounting Type Panel Mount, Front
Contact Plating Gold
Supply Chain
Factory Lead Time 24 Weeks
