MPI001/TERM/D1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

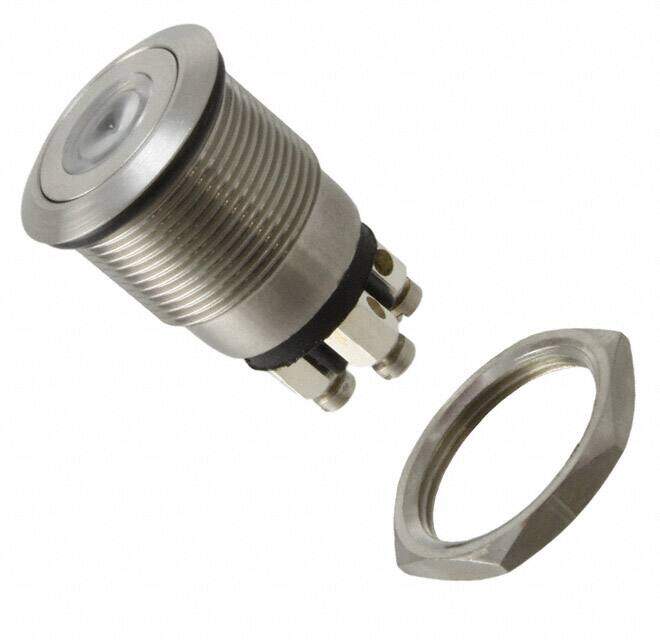

BULGIN MPI001/TERM/D1 Vandal Resistant Switch, MPI001 Series, SPST-NO, Natural, Screw, 50 mA
PDF
/
Buying Options
Total Price: USD $45.44
Unit Price: USD $45.4432
≥1 USD $45.4432
≥10 USD $41.35208
≥100 USD $39.428928
≥500 USD $36.784352
≥1000 USD $35.341768
≥3000 USD $32.93759
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Contact Material Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Actuator Material Stainless Steel
Technical
Operating Temperature -30°C~70°C
Packaging Bulk
Published 2007
Feature Stainless Steel
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Color Green, Red
Voltage - Rated 24V
Current Rating (Amps) 50mA DC
Orientation Straight
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating 50mA
Termination Style Screw Terminal
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.20mm Dia
Contact Resistance 100mOhm
Insulation Resistance 1GOhm
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 2.05 3.6VDC
Illumination Type, Color LED, Red/Green
Electrical Life 35,000 Cycles
Number of Poles 1
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Mechanical Life 750,000 Cycles
Forward Current 20mA
Contact Current Rating 50mA
Operating Force 12 N
Illumination Type LED
Illumination Color Green, Red
Dimensions
Actuator Length 0m
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP66
