MPI001/28/RD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

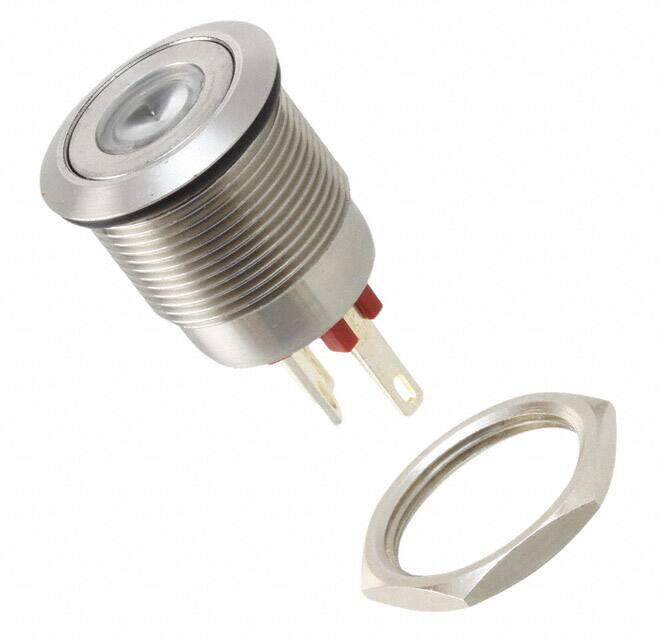

BULGIN MPI001/28/RD Vandal Resistant Switch, MPI001 Series, SPST-NO, Natural, Connector, 50 mA
PDF
/
Buying Options
Total Price: USD $34.33
Unit Price: USD $34.326426
≥1 USD $34.326426
≥10 USD $32.383418
≥100 USD $30.550395
≥500 USD $28.821122
≥1000 USD $27.18974
Inventory: 1625
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 32.7mm
Technical
Operating Force-Max 12 N
Forward Voltage 1.85V
Contact Current Rating 50mA
Forward Current 20mA
Mechanical Life 750,000 Cycles
Electrical Life 35,000 Cycles
Contact Voltage(DC)-Max 24V
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 1.85VDC
Contact Current(DC)-Max 0.05A
Color - Actuator/Cap Silver
Insulation Resistance 1GOhm
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Flush
Body Length or Diameter 19.2mm
Termination Style Quick Connect - 0.110 (2.8mm)
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating (Amps) 50mA DC
Voltage - Rated DC 24V
HTS Code 8536.50.90.31
Color Red
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Stainless Steel
JESD-609 Code e4
Published 2002
Packaging Tray
Operating Temperature -30°C~70°C
Physical
Surface Mount NO
Mounting Type Panel Mount, Front
Contact Plating Gold
Supply Chain
Factory Lead Time 24 Weeks
