MP0045/1E1RD012
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

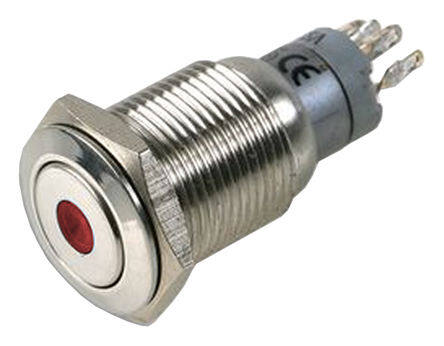

BULGIN MP0045/1E1RD012 Illuminated Pushbutton Switch, Dot Illuminated Series, DPDT-CO, On-Off, 3 A, 250 V, Red
PDF
/
Buying Options
Total Price: USD $29.52
Unit Price: USD $29.522229
≥1 USD $29.522229
≥10 USD $27.851165
≥100 USD $26.274683
≥500 USD $24.787436
≥1000 USD $23.384375
Inventory: 1107
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Material Stainless Steel
Housing Material Stainless Steel
Actuator Material Stainless Steel
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Published 2007
JESD-609 Code e4
Feature Stainless Steel
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Color Red
HTS Code 8536.50.70.00
Current Rating (Amps) 3A AC
Orientation Straight
Ingress Protection IP40
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 250V
Body Length or Diameter 16.2mm
Actuator Type Round, Button, Flush
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 16.20mm Dia
Contact Resistance 50mOhm
Insulation Resistance 1GOhm
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, Red
Max Voltage Rating (AC) 250V
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 30,000 Cycles
Throw Configuration DPDT, DPST
Mechanical Life 200,000 Cycles
Contact Current Rating 3A
Illumination Type LED
Thread Size M16
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@250VAC
Bushing Length 0.394 inch
Dimensions
Body Height 29.5mm
Length - Termination 0.276 inch
Actuator Length 0m
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
