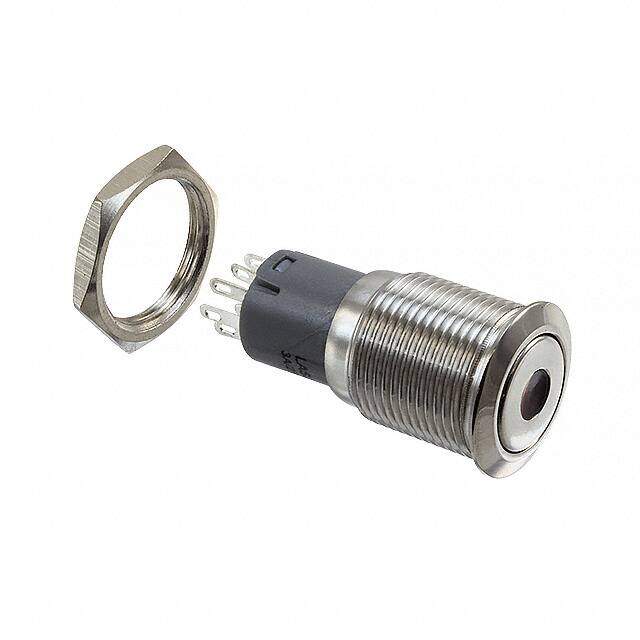

MP0045/1D1BL012
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button N.O./N.C. DPDT Flush Round Button 3A 250VAC Momentary Contact Solder Tag Panel Mount
PDF
/
Buying Options
Total Price: USD $25.8
Unit Price: USD $25.799559
≥1 USD $25.799559
≥10 USD $24.339213
≥100 USD $22.961514
≥500 USD $21.661807
≥1000 USD $20.43567
Inventory: 1195
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 0m
Length - Termination 0.276 inch
Body Height 29.5mm
Technical
Bushing Length 0.394 inch
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Illumination Color Blue
Thread Size M16
Illumination Type LED
Contact Current Rating 3A
Mechanical Life 200,000 Cycles
Throw Configuration DPDT, DPST
Electrical Life 30,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Max Voltage Rating (AC) 250V
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 12VDC
Color - Actuator/Cap Silver
Insulation Resistance 1000000000Ohm
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 16.20mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button, Flush
Body Length or Diameter 16.2mm
Voltage - Rated AC 250V
Termination Style Solder Lug
Current Rating 3A
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 3A AC
HTS Code 8536.50.70.00
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Stainless Steel
JESD-609 Code e4
Published 2007
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Actuator Material Stainless Steel
Housing Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 24 Weeks
