MP0042/2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

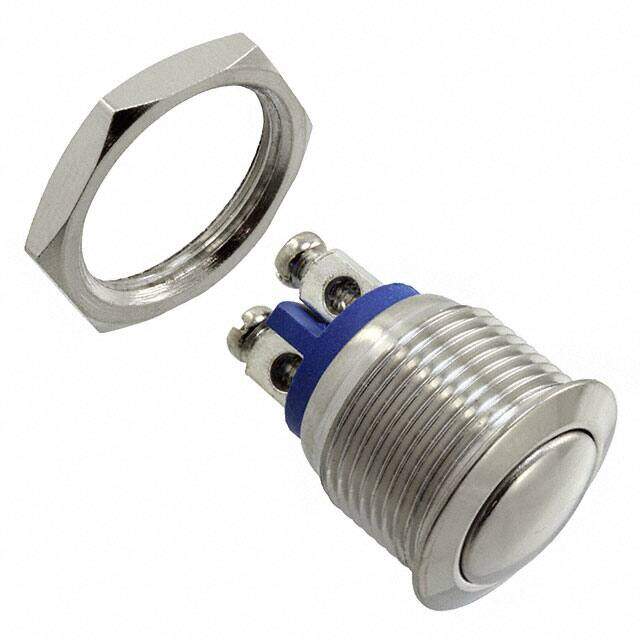

BULGIN MP0042/2 Vandal Resistant Switch, Domed Profile Series, SPST, Natural, Screw, 2 A
PDF
/
Buying Options
Total Price: USD $16.95
Unit Price: USD $16.9488
≥1 USD $16.9488
≥10 USD $15.39384
≥100 USD $14.701632
≥500 USD $13.92336
≥1000 USD $13.404424
≥3000 USD $12.539648
Inventory: 196
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP66
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 1.1mm
Technical
Thread Size M16
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 48V
Throw Configuration SPST
Electrical Life 100,000 Cycles
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1GOhm
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 16.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Domed
Termination Style Screw Terminal
Current Rating 2A
Orientation Straight
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
HTS Code 8536.50.90.31
Voltage - Rated 48V
Number of Positions 2
Type Standard
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Stainless Steel
JESD-609 Code e4
Published 2007
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Actuator Material Stainless Steel
Housing Material Stainless Steel
Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 24 Weeks
