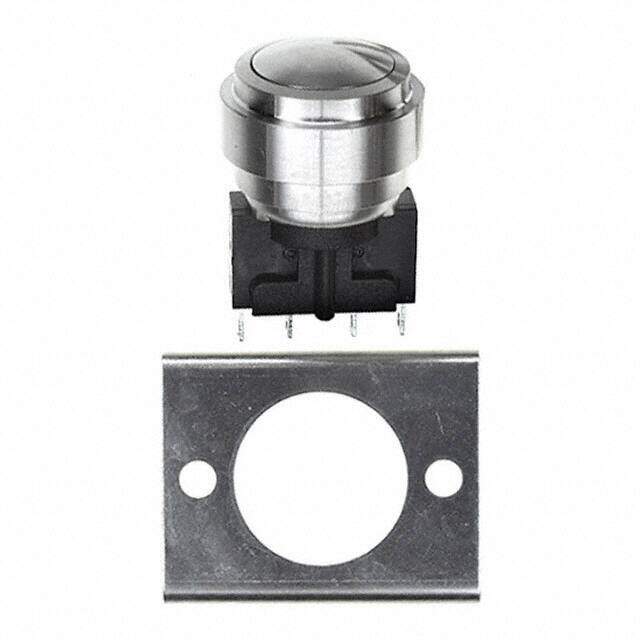

MP0034/3
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 5A 250V
PDF
/
Inventory: 3191
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 2.1mm
Body Height 28.4mm
Technical
Operating Force-Max 2.7 N
Outside Diameter 20 mm
Contact (AC) Max Rating R Load 5A@250VAC
Contact Current(AC)-Max 5A
Contact Current Rating 5A
Mechanical Life 250,000 Cycles
Max Voltage Rating (DC) 28V
Throw Configuration SPDT, SPST
Number of Poles 1
Electrical Life 35,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Max Voltage Rating (AC) 250V
Contact Current(DC)-Max 2A
Insulation Resistance 1GOhm
Panel Cutout Dimensions Circular - 18.90mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button, Domed
Voltage - Rated AC 250V
Termination Style Solder Lug
Current Rating 5A
Orientation Straight
Current Rating (Amps) 5A AC 2A DC
Voltage - Rated DC 28V
HTS Code 8536.50.70.00
Terminal Finish Tin (Sn)
Type Anti-Vandal
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 2010
Packaging Tray
Operating Temperature -20°C~70°C
Physical
Actuator Material Stainless Steel
Housing Material Stainless Steel
Material Stainless Steel
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Silver
