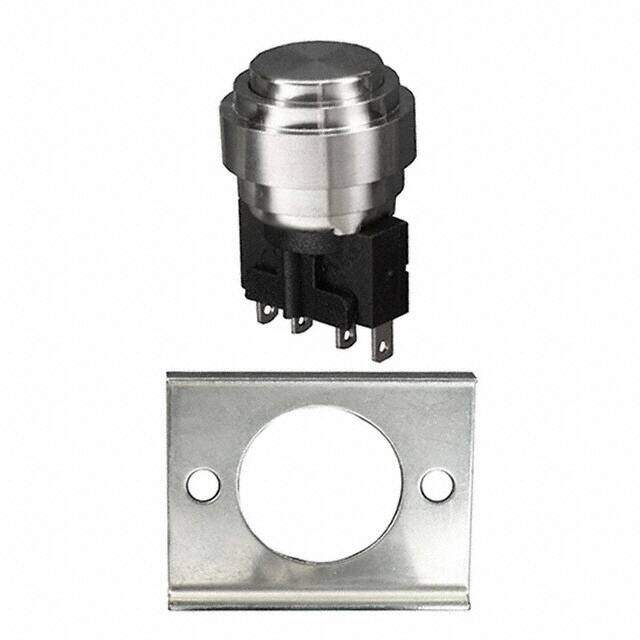

MP0034/2
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 5A 250V
PDF
/
Inventory: 5106
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount, Rear
Material Stainless Steel
Housing Material Stainless Steel
Actuator Material Stainless Steel
Technical
Operating Temperature -20°C~70°C
Packaging Tray
Published 2005
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Type Anti-Vandal
Terminal Finish Tin (Sn)
HTS Code 8536.50.70.00
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC 2A DC
Orientation Straight
Current Rating 5A
Termination Style Solder Lug
Voltage - Rated AC 250V
Actuator Type Round, Button
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Panel Cutout Dimensions Circular - 18.90mm Dia
Insulation Resistance 1GOhm
Contact Current(DC)-Max 2A
Max Voltage Rating (AC) 250V
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 35,000 Cycles
Number of Poles 1
Throw Configuration SPDT, SPST
Max Voltage Rating (DC) 28V
Mechanical Life 250,000 Cycles
Contact Current Rating 5A
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@250VAC
Outside Diameter 20 mm
Operating Force-Max 2.7 N
Dimensions
Body Height 28.4mm
Actuator Length 2.3mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
