MP0031
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

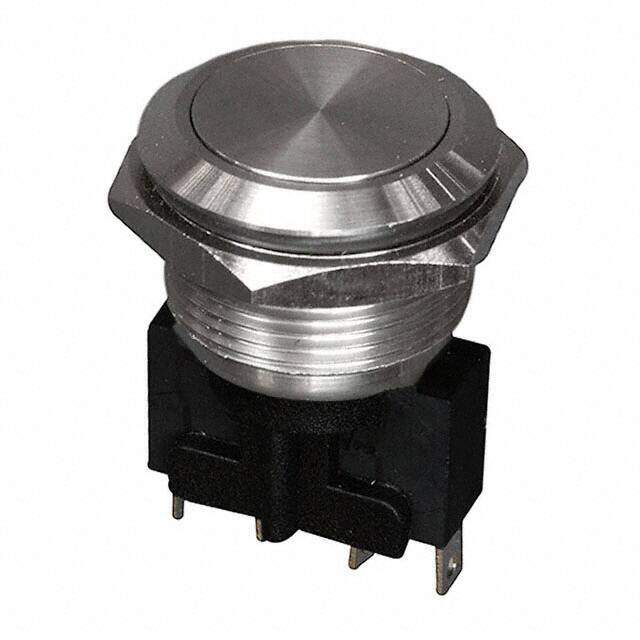

BULGIN MP0031 Vandal Resistant Switch, SPCO, Natural, Solder, 5 A, 250 V
PDF
/
Buying Options
Total Price: USD $29.04
Unit Price: USD $29.04
≥1 USD $29.04
≥10 USD $26.43168
≥100 USD $25.202496
≥500 USD $23.512016
≥1000 USD $22.59004
≥3000 USD $21.053261
Inventory: 98
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.063 inch
Body Height 30mm
Technical
Operating Force-Max 4.7 N
Contact Current(AC)-Max 5A
Contact Current Rating 5A
Mechanical Life 1,000,000 Cycles
Electrical Life 35,000 Cycles
Contact Current(DC)-Max 2A
Color - Actuator/Cap Silver
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Voltage - Rated AC 250V
Termination Style Solder Lug
Ingress Protection IP66 - Dust Tight, Water Resistant
Current Rating (Amps) 5A AC 2A DC
Voltage - Rated DC 28V
HTS Code 8536.50.70.00
Additional Feature LOW PROFILE
Terminal Finish Tin (Sn)
Number of Positions 2
Type Anti-Vandal
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2003
Packaging Tray
Operating Temperature -20°C~70°C
Physical
Terminal Material BRASS
Actuator Material STAINLESS STEEL
Housing Material STAINLESS STEEL
Insulation Material GLASS FILLED NYLON
Mounting Feature PANEL MOUNT-THREADED
Surface Mount NO
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 24 Weeks
