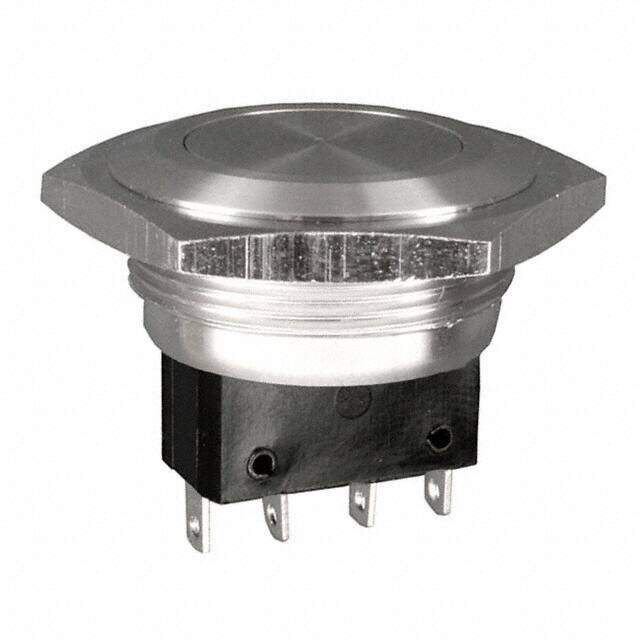

MP0027
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches LOW BTN FRONT MOUNT
PDF
/
Buying Options
Total Price: USD $32.25
Unit Price: USD $32.252
≥1 USD $32.252
≥10 USD $29.35152
≥100 USD $27.986464
≥500 USD $26.109424
≥1000 USD $25.085456
≥3000 USD $23.378995
Inventory: 164
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP40
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 0m
Length 37mm
Diameter 27.8mm
Technical
Operating Force-Max 7.5 N
Contact Current(AC)-Max 5A
Illumination Type Illuminated
Contact Current Rating 5A
Mechanical Life 1,000,000 Cycles
Throw Configuration SP, SPDT, SPST
Number of Poles 1
Electrical Life 35,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Contact Current(DC)-Max 2A
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 25.80mm Dia
Switch Function On-Mom, Off-Mom
Circuit DPST-NO/NC
Actuator Type Round, Button, Flush
Voltage - Rated AC 250V
Termination Style Solder Lug
Current Rating 5A
Depth 37mm
Orientation Straight
Current Rating (Amps) 5A AC 2A DC
Voltage - Rated DC 28V
HTS Code 8536.50.70.00
Terminal Finish Tin (Sn)
Number of Positions 2
Type Anti-Vandal
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2003
Packaging Tray
Operating Temperature -20°C~70°C
Physical
Terminal Material BRASS
Actuator Material Stainless Steel
Housing Material Stainless Steel
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 24 Weeks
