MAV0120/3D1BL024
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

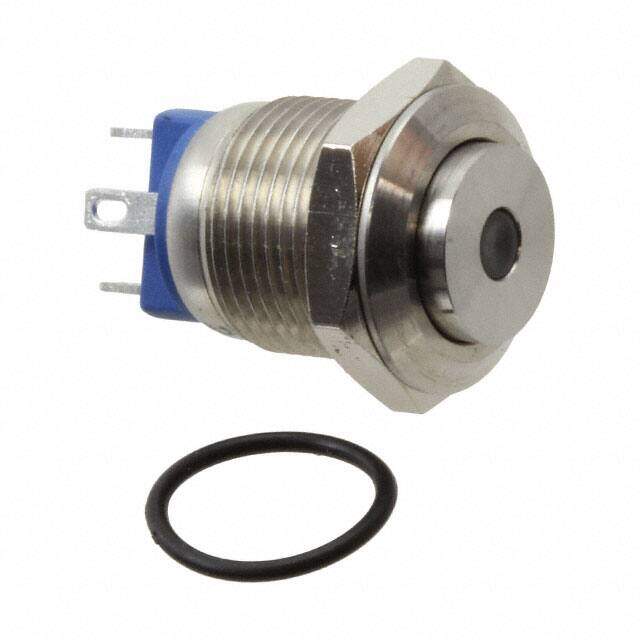

BULGIN MAV0120/3D1BL024 Vandal Resistant Switch, IP67, M12 X 0.75, MAV0120 Series, SPST, Solder, 2 ANew
PDF
/
Buying Options
Total Price: USD $22.87
Unit Price: USD $22.86606
≥1 USD $22.86606
≥10 USD $21.571752
≥100 USD $20.350707
≥500 USD $19.198784
≥1000 USD $18.112066
Inventory: 1262
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Illumination Color Blue
Contact Current Rating 2A
Mechanical Life 500,000 Cycles
Throw Configuration SPST
Electrical Life 200,000 Cycles
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 24VDC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 12.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 2A DC
Voltage - Rated DC 36V
Terminal Finish Gold (Au)
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Stainless Steel
JESD-609 Code e4
Series MAV0120
Published 2016
Packaging Tray
Operating Temperature -25°C~55°C
Physical
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 24 Weeks
