MAV0120/3D1AM012
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

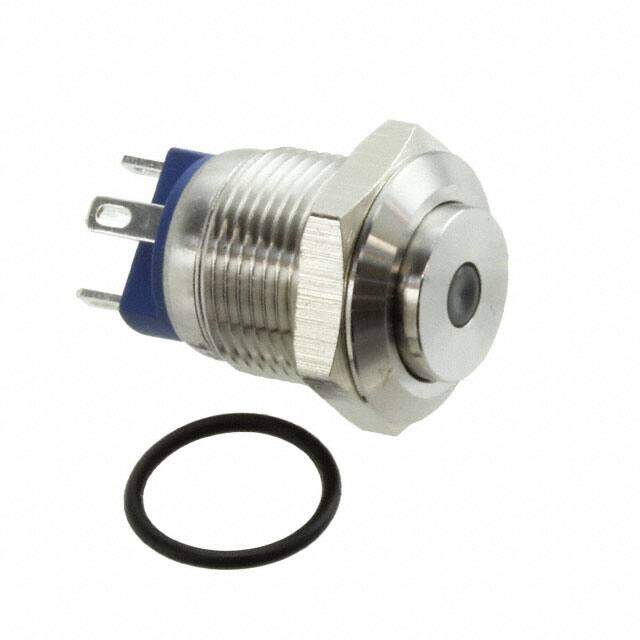

BULGIN MAV0120/3D1AM012 Vandal Resistant Switch, IP67, M12 X 0.75, MAV0120 Series, SPST, Solder, 2 ANew
PDF
/
Buying Options
Total Price: USD $25.73
Unit Price: USD $25.7312
≥1 USD $25.7312
≥10 USD $23.36752
≥100 USD $22.3168
Inventory: 60
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~55°C
Packaging Tray
Published 2016
Series MAV0120
JESD-609 Code e4
Feature Stainless Steel
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Terminal Finish Gold (Au)
Voltage - Rated DC 36V
Current Rating (Amps) 2A DC
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Style Solder Lug
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 12.00mm Dia
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, Amber
Electrical Life 200,000 Cycles
Throw Configuration SPST
Mechanical Life 500,000 Cycles
Contact Current Rating 2A
Illumination Color Orange, Yellow
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
