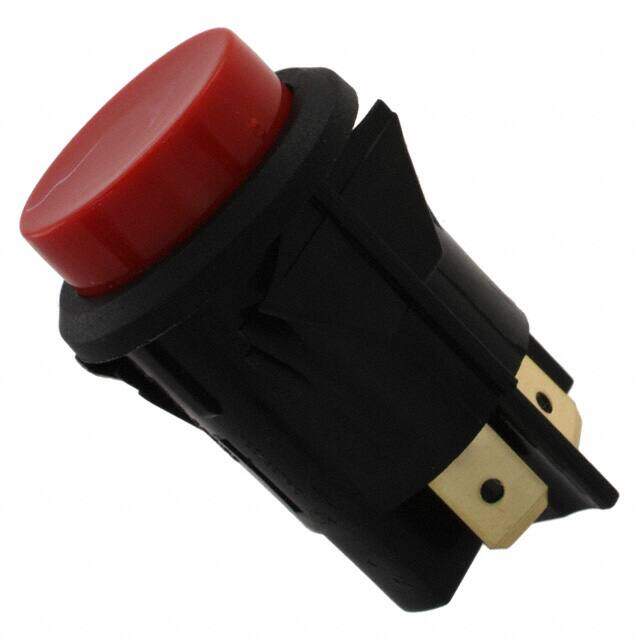

C7050AFBR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 16A 250V
PDF
/
Buying Options
Total Price: USD $8.02
Unit Price: USD $8.023132
≥1 USD $8.023132
≥200 USD $3.105009
≥500 USD $2.996038
≥1000 USD $2.942209
Inventory: 3560
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mounting Type Panel Mount, Snap-In
Surface Mount NO
Insulation Material NYLON
Actuator Material NYLON
Center Contact Material SILVER ALLOY
End Contact Material SILVER ALLOY
Technical
Packaging Bulk
Series 7000
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Standard
Current Rating (Amps) 16A AC
Ingress Protection IP40
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 250V
Actuator Type Round, Button
Circuit DPST
Switch Function On-Off
Panel Cutout Dimensions Circular - 25.00mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 20000000Ohm
Color - Actuator/Cap Red
Dielectric Withstanding Voltage 3000VAC V
Electrical Life 50000 Cycle(s)
Contact Current(AC)-Max 16A
Contact Voltage(AC)-Max 250V
Body Color BLACK
Dimensions
Length - Termination 0.358 inch
Actuator Length 0.382 inch
Compliance
RoHS Status ROHS3 Compliant
